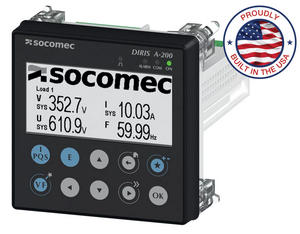

Socomec DIRIS A-200
Manufacturer: Socomec
Product: DIRIS A-200
Model:
Class: MODBUS
Updated: 2026-09-15
[ CLICK HERE FOR MORE INFORMATION ]
Registers
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | System Ph-N Voltage | V | |
| 2 | System Ph-Ph Voltage | V | |
| 3 | System Current | A | |
| 4 | Ph-N Voltage : V1 | V | |
| 5 | Ph-N Voltage : V2 | V | |
| 6 | Ph-N Voltage : V3 | V | |
| 7 | Ph-N Voltage : Vn | V | |
| 8 | Ph-Ph Voltage : U12 | V | |
| 9 | Ph-Ph Voltage : U23 | V | |
| 10 | Ph-Ph Voltage : U31 | V | |
| 11 | Current: I1 | A | |
| 12 | Current: I2 | A | |
| 13 | Current: I3 | A | |
| 14 | Current: In | A | |
| 15 | Frequency | Hz | |
| 16 | Total active power | kW | |
| 17 | Total reactive power | kvar | |
| 18 | Total apparent power | kVA | |
| 19 | Total power factor | . | |
| 20 | Active power P1 | kW | |
| 21 | Active power P2 | kW | |
| 22 | Active power P3 | kW | |
| 23 | Reactive power Q1 | kvar | |
| 24 | Reactive power Q2 | kvar | |
| 25 | Reactive power Q3 | kvar | |
| 26 | Apparent power S1 | kVA | |
| 27 | Apparent power S2 | kVA | |
| 28 | Apparent power S3 | kVA | |
| 29 | Power factor PF1 | . | |
| 30 | Power factor PF2 | . | |
| 31 | Power factor PF3 | . | |
| 32 | System THD V | % | |
| 33 | System THD U | % | |
| 34 | THD V1 | % | |
| 35 | THD V2 | % | |
| 36 | THD V3 | % | |
| 37 | THD U12 | % | |
| 38 | THD U23 | % | |
| 39 | THD U31 | % |
Notes
3 phase panel meter/analyzer. For RTU, connect: ezeio D0 -> RS485 - ezeio D1 -> RS485 + ezeio 0V -> RS485 NC Default access code is 0100
