ezeio2:driverdetail [ezeio documentation]

Manufacturer: Socomec
Product: DIRIS Digiware
Model: I-35
Class: MODBUS
Updated: 2026-09-02

#	Name	Unit
1	Date of last instance
2	Integration time	s
3	Frequency	Hz
4	System Ph-N Voltage	V
5	System Ph-Ph Voltage	V
6	V1-N	V
7	V2-N	V
8	V3-N	V
9	N	V
10	U12	V
11	U23	V
12	U31	V
13	I1	A
14	I2	A
15	I3
16	In	A
17	Inba	%
18	Idir	A
19	Iinv	A
20	Ihom	A
21	Inb	%
22	Snom	kVA
23	Hour meter	h
24	Active energy positive	kWh
25	Active energy negative	kWh
26	Active power	kW
27	Reactive power	kVAr
28	Apparent power	kVA
29	Power factor	.
30	Active power ph 1	kW
31	Active power ph 2	kW
32	Active power ph 3	kW
33	Power factor ph 1	.
34	Power factor ph 2	.
35	Power factor ph 3	.
36	System THD V	%
37	System THD U	%
38	System THD I	%
39	System TDD I	.
40	THD I1	%
41	THD I2	%
42	THD I3	%
43	THD In	%
44	TDD I1	.
45	TDD I2	.
46	TDD I3	.
47	TDD In	.
48	Ack ID
49	Status
50	Alarm Type
51	Alarm cause
52	Criticality
53	Start date
54	Duration
55	Startup delay	s
56	Dropout delay	s

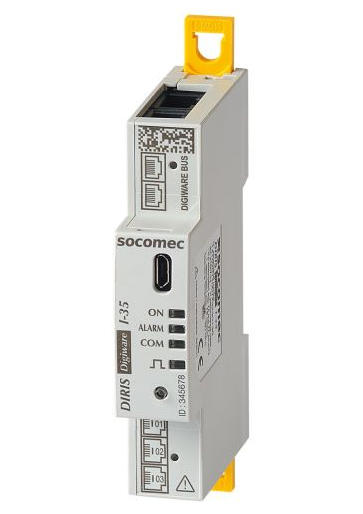

Three phase AC voltage metering module.
Part of the DIRIS DIgiware system.
Requires a gateway device to communicate.

Socomec I-35
