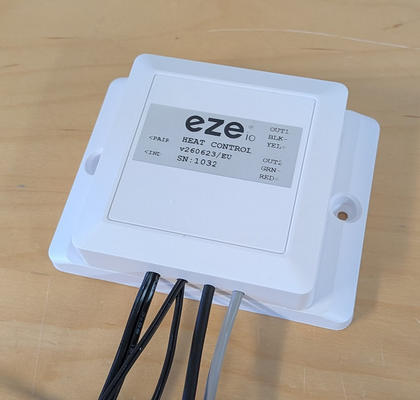

Wireless Water Heat Unit
Manufacturer: eze System
Product: Variable flow heating
Model:
Class: SDI12
Updated: 2026-06-23
[ CLICK HERE FOR MORE INFORMATION ]
Registers
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Probe Relative Humidity | %RH | |
| 2 | Probe Temperature | °C | |
| 3 | Probe Dew point | °C | |
| 4 | Input 1 Temperature | °C | |
| 5 | Input 2 Temperature | °C | |
| 6 | Valve output 1 | % | |
| 7 | Valve output 2 | % | |
| 8 | Last update | ||
| 9 | Battery | V | |
| 10 | Device Rx RSSI | dBm | |
| 11 | Device Rx SNR | dB | |
| 12 | Gateway Rx RSSI | dBm | |
| 13 | Gateway Rx SNR | dB |
Notes
Wireless peripheral. Use with the Wireless Gateway. 1 RH & Temperature sensor 2 Temperature sensors 2 0-10V valve control outputs (max 20mA) Power with 12-24VDC. Enter serial number, and follow enrollment procedure explained for the gateway. Wiring: Valve 1 : Black (-) Yellow (+) Valve 2 : Green (-) Red (+)
