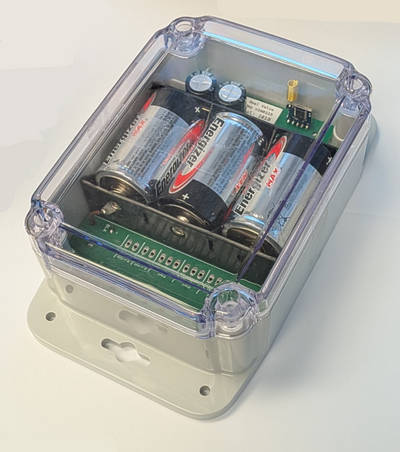

Wireless dual valve controller
Manufacturer: eze System
Product: Latching valve controller, US/AU
Model:
Class: SDI12
Updated: 2026-06-22
[ CLICK HERE FOR MORE INFORMATION ]
Registers
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Valve 1 state | . | |
| 2 | Valve 2 state | . | |
| 3 | Sensor 1 | mA | |
| 4 | Sensor 2 | mA | |
| 5 | Sensor 3 | mA | |
| 6 | Valve 1 pulse current | A | |
| 7 | Valve 2 pulse current | A | |
| 8 | Last update | ||
| 9 | Battery | V | |
| 10 | Device Rx RSSI | dBm | |
| 11 | Device Rx SNR | dB | |
| 12 | Gateway Rx RSSI | dBm | |
| 13 | Gateway Rx SNR | dB |
Notes
Wireless peripheral. Use with the Wireless Gateway. 3 analog inputs (4-20mA) 2 pulse outputs for latching solenoid valves. Enter serial number, and follow enrollment procedure explained for the gateway. Wiring: Valve 1 : Black & Green Valve 2 : Brown & Blue Sensor 1 : Purple (+) & Red (-) Sensor 2 : Gray (+) & Orange (-) Sensor 3 : White (+) & Yellow (-)
