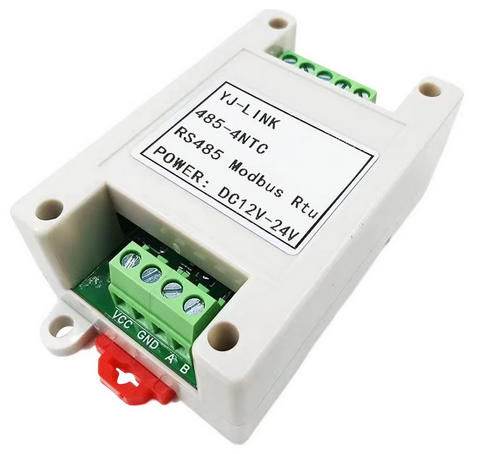

YJLink 4NTC expander
Manufacturer: YJ-Link
Product: Modbus NTC x 4
Model: 485-4NTC
Class: MODBUS
Updated: 2025-09-03
[ CLICK HERE FOR MORE INFORMATION ]
Registers
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Temperature 1 | °C | |
| 2 | Temperature 2 | °C | |
| 3 | Temperature 3 | °C | |
| 4 | Temperature 4 | °C | |
| 5 | Temperature 1 | °F | |
| 6 | Temperature 2 | °F | |
| 7 | Temperature 3 | °F | |
| 8 | Temperature 4 | °F |
Notes
4 channel NTC-to-Modbus/RTU transducer Connect: ezeio D0 -> B ezeio D1 -> A ezeio 0V -> GND ezeio +V -> VCC (if powered from ezeio) Default 9600 bps, address 1 Change address by writing to address 1 Change speed by writing to address 2 1 = 9600, 3 = 19200
