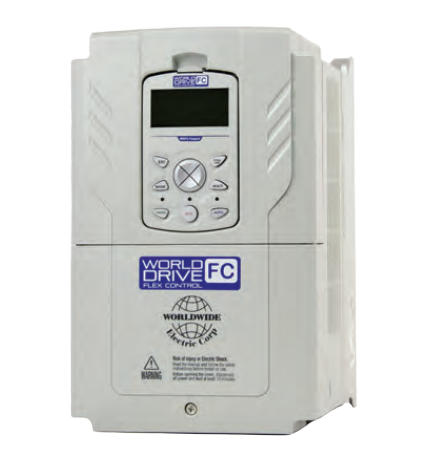

WWEC FC VFD
Manufacturer: Wold Wide Electric
Product: FlexControl
Model: FC
Class: MODBUS
Updated: 2025-09-02
[ CLICK HERE FOR MORE INFORMATION ]
Registers
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Output current | A | |
| 2 | Output frequency | Hz | |
| 3 | Output rpm | rpm | |
| 4 | Output voltage | V | |
| 5 | DC link voltage | V | |
| 6 | Output power | kW | |
| 7 | Operation state | . | |
| 8 | Speed state | . | |
| 9 | Direction state | . | |
| 10 | Operation command source | ||
| 11 | Frequency command source | ||
| 12 | On time | h | |
| 13 | Run time | h | |
| 14 | Fan time | h | |
| 15 | Application status | ||
| 16 | Heatsink Temperature | °C | |
| 17 | Power factor | pf | |
| 18 | Inv fan running time | % | |
| 19 | Multi motor | . | |
| 20 | Trip info 1 | . | |
| 21 | Trip info 2 | . | |
| 22 | Trip info 3 | . | |
| 23 | Level trip info | . | |
| 24 | HDW trip info | . | |
| 25 | Warning info 1 | . | |
| 26 | Warning info 2 | . | |
| 27 | Frequency CMD | Hz | |
| 28 | Speed CMD | rpm | |
| 29 | Run CMD | . |
Notes
The WorldDrive Flex Control (WDFC) Variable Frequency Drive (VFD) offer a versatile solution for motor control from 0.5 to 800* hp. It is suitable for a variety of applications from conveyors to pumps and almost everything in between. Connect : ezeio D0 -> S+ ezeio D1 -> S- ezeio 0V -> SG Default : 9600bps, address 1 Please review section 7.2 in the WDFC manual for details on setting it up to accept remote commands
