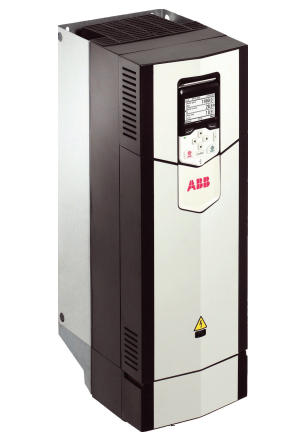

ABB ACS880 VFD
Manufacturer: ABB
Product: ACS880
Model: ACS880
Class: MODBUS
Updated: 2025-10-20
[ CLICK HERE FOR MORE INFORMATION ]
Registers
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Motor speed used | rpm | |
| 2 | Motor speed estimated | rpm | |
| 3 | Motor speed % | % | |
| 4 | Output frequency | Hz | |
| 5 | Motor current | A | |
| 6 | Motor current % | % | |
| 7 | Motor torque | % | |
| 8 | DC link voltage | V | |
| 9 | Output voltage | V | |
| 10 | Output power | kW | |
| 11 | Ambient temperature | °C | |
| 12 | Panel reference local | . | |
| 13 | Panel reference remote | . | |
| 14 | Bus reference 1 | . | |
| 15 | Bus reference 2 | . | |
| 16 | Tripping fault | . | |
| 17 | Active warning | . | |
| 18 | Main control word | . | |
| 19 | App control word | . | |
| 20 | Main status word | . | |
| 21 | Drive status word | . | |
| 22 | Digital inputs | . | |
| 23 | Speed REF1 | . | |
| 24 | Speed REF2 | . | |
| 25 | Local/Remote status | . | |
| 26 | E-stop | . |
Notes
The ACS880-01 is a drive for controlling synchronous AC induction motors, permanent magnet synchronous motors, AC induction servomotors and ABB synchronous reluctance motors (SynRM motors). Connect: ezeio D0 -> XD2D-2/A ezeio D1 -> XD2D-1/B ezeio 0V -> XD2D-3/BGND NOTE: Addressing mode (58.33) must be set to Mode 0. Word order (58.34) must be set to 0 (Hi-Lo) Refer to the ACS880 Firmware documentation, "Setting up the embedded fieldbus interface" section for details on setting up Modbus communications in the drive.
