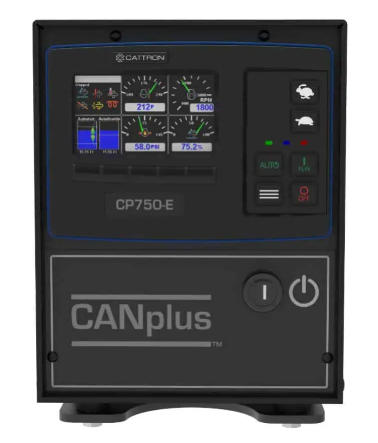

CATTRON CP750E/CP1000
Manufacturer: Cattron
Product: CANplus
Model: CP750-E/CP1000
Class: MODBUS
Updated: 2026-01-08
[ CLICK HERE FOR MORE INFORMATION ]
Registers
| # | Name | Unit | Description |
|---|---|---|---|
| 1 | Idle Speed | ||
| 2 | Intermediate Speed | ||
| 3 | Run Speed | ||
| 4 | Max Speed | ||
| 5 | Autostart Mode (Start-Stop With) | ||
| 6 | Maintain Target Point | % | |
| 7 | Maintain Gain | ||
| 8 | Autostart Transducer High Setpoint | % | |
| 9 | Autostart Transducer Low Setpoint | % | |
| 10 | Current Engine Speed | RPM | |
| 11 | Engine Coolant Temperature | °C | |
| 12 | Engine Oil Pressure | kPa | |
| 13 | Battery Voltage | V | |
| 14 | DPF Soot Load | % | |
| 15 | DPF Ash Load | % | |
| 16 | Engine Hours | h | |
| 17 | Override Request Speed | RPM | |
| 18 | Start/Stop Override | ||
| 19 | Panel Operating Mode | ||
| 20 | Engine Running Status | ||
| 21 | Number Of Active Faults | ||
| 22 | Low float switch | ||
| 23 | High float switch | ||
| 24 | Coolant Switch | ||
| 25 | Oil Switch | ||
| 26 | Aux Switch 1 | ||
| 27 | Aux Switch 2 | ||
| 28 | Aux Switch 3 | ||
| 29 | External Stop Switch | ||
| 30 | Aux Switch 5 | ||
| 31 | Aux Switch 4 | ||
| 32 | Aux Switch 6 | ||
| 33 | External Keyswitch | ||
| 34 | Fuel Level | % | |
| 35 | Pulse 1 Totalized Pulse Count Raw (runtime) | ||
| 36 | Pulse 1 Frequency | Hz | |
| 37 | Pulse 1 Percent of Full Scale | % | |
| 38 | Pulse 2 Totalized Pulse Count Raw (Runtime) | bit | |
| 39 | Pulse 2 Frequency | Hz | |
| 40 | Pulse 2 Percent of Full Scale | % | |
| 41 | Pulse 1 Scaled Total | ||
| 42 | Pulse 2 Scaled Total | ||
| 43 | Aux Output 1 | ||
| 44 | Aux Output 2 | ||
| 45 | Aux Output 3 | ||
| 46 | Alarm Output | ||
| 47 | Aux Output 4 | ||
| 48 | Actual Torque | % | |
| 49 | Air Inlet Temperature | C | |
| 50 | Alternator Current | A | |
| 51 | Alternator Voltage | V | |
| 52 | Engine Coolant Pressure | kPa | |
| 53 | Engine Coolant Level | % | |
| 54 | Engine Oil Level | % | |
| 55 | Engine Oil Temperature | C | |
| 56 | Fuel Delivery Pressure | kPa | |
| 57 | Engine Fuel Rate | l/h | |
| 58 | Fuel Temperature | C | |
| 59 | Net Battery Current | A | |
| 60 | Load Percentage At RPM | % | |
| 61 | Requested Torque | % | |
| 62 | DEF/SCR Fluid Level | % | |
| 63 | Scaled Transducer 1 Value | ||
| 64 | Scaled Transducer 2 Value | ||
| 65 | Scaled Transducer 3 Value | ||
| 66 | Scaled Transducer 4 Value | ||
| 67 | Scaled Transducer 5 Value | ||
| 68 | Scaled Transducer 6 Value | ||
| 69 | 1st active SPN | ||
| 70 | 1st active FMI | ||
| 71 | 1st active Occurance Count | ||
| 72 | 1st active Source Address | ||
| 73 | 1st active Engine Hours | ||
| 74 | 1st active EPOCH Time | ||
| 75 | 2nd active SPN | ||
| 76 | 2nd active FMI | ||
| 77 | 2nd active Occurance Count | ||
| 78 | 2nd active Source Address | ||
| 79 | 2nd active Engine Hours | ||
| 80 | 2nd active EPOCH Time | ||
| 81 | 3rd active SPN | ||
| 82 | 3rd active FMI | ||
| 83 | 3rd active Occurance Count | ||
| 84 | 3rd active Source Address | ||
| 85 | 3rd active Engine Hours | ||
| 86 | 3rd active EPOCH Time | ||
| 87 | Transducer 1 4mA value | ||
| 88 | Transducer 1 20mA value | ||
| 89 | Transducer 1 Setup unit | ||
| 90 | Transducer 1 Display unit | ||
| 91 | Transducer 2 4mA value | ||
| 92 | Transducer 2 20mA value | ||
| 93 | Transducer 2 Setup unit | ||
| 94 | Transducer 2 Display unit | ||
| 95 | Transducer 3 4mA value | ||
| 96 | Transducer 3 20mA value | ||
| 97 | Transducer 3 Setup unit | ||
| 98 | Transducer 3 Display unit | ||
| 99 | Transducer 4 4mA value | ||
| 100 | Transducer 4 20mA value | ||
| 101 | Transducer 4 Setup unit | ||
| 102 | Transducer 4 Display unit |
